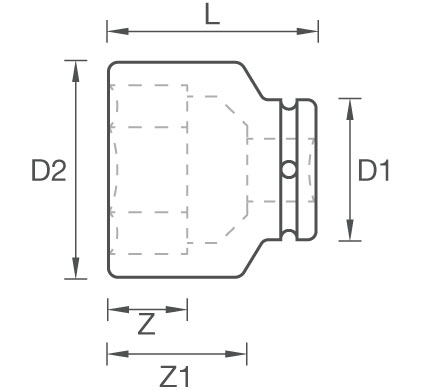

D1 D2 L Z Z1 Ürün Kodu Kare Sürücü mm mm mm mm mm mm
SD34-1116P 3/4″ 11/16″ 44 30 50 10 24 0,35 SD34-34P 3/4″ 3/4″ 44 32 50 11 24 0,38 SD34-78P 3/4″ 7/8″ 44 35 50 12 24 0,38 SD34-1516P 3/4″ 15/16″ 44 38 50 14 24 0,39 SD34-1P 3/4″ 1″ 44 39 50 14 24 0,40 SD34-118P 3/4″ 1″1/8 44 44 54 16 29 0,42 SD34-114P 3/4″ 1″1/4 44 48 56 19 30 0,48 SD34-138P 3/4″ 1″3/8 44 53 56 20 30 0,52 SD34-1716P 3/4″ 1″7/16 44 56 58 21 32 0,58 SD34-112P 3/4″ 1″1/2 44 57 58 21 32 0,62 SD34-158P 3/4″ 1″5/8 44 61 63 23 34 0,68 SD34-11116P 3/4″ 1″11/16 44 64 63 23 34 0,68 SD34-134P 3/4″ 1″3/4 44 65 63 25 34 0,78 SD34-178P 3/4″ 1″7/8 44 69 70 26 38 0,95 SD34-200P 3/4″ 2″ 44 71 70 30 38 0,99 SD34-238P 3/4″ 2″3/8 44 83 80 35 53 1,43 -
