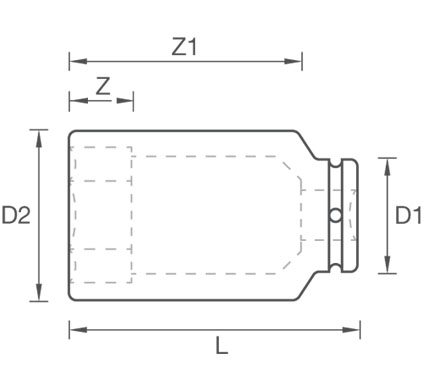

D1 | D2 | L | Z | Z1 | ||||
---|---|---|---|---|---|---|---|---|
Ürün Kodu | Kare Sürücü | mm | mm | mm | mm | mm | mm | |
SD100-19L | 1″ | 19 | 54 | 35 | 100 | 11 | 71 | 1,30 |
SD100-22L | 1″ | 22 | 54 | 37 | 100 | 12 | 71 | 0,88 |
SD100-24L | 1″ | 24 | 54 | 38 | 100 | 14 | 68 | 0,89 |
SD100-27L | 1″ | 27 | 54 | 44 | 100 | 16 | 68 | 0,99 |
SD100-30L | 1″ | 30 | 54 | 50 | 100 | 17 | 68 | 1,15 |
SD100-32L | 1″ | 32 | 54 | 52 | 100 | 19 | 68 | 1,17 |
SD100-33L | 1″ | 33 | 54 | 54 | 100 | 19 | 68 | 1,19 |
SD100-36L | 1″ | 36 | 54 | 57 | 100 | 20 | 68 | 1,18 |
SD100-41L | 1″ | 41 | 54 | 63 | 100 | 23 | 67 | 1,41 |
SD100-46L | 1″ | 46 | 54 | 69 | 115 | 25 | 82 | 1,85 |
SD100-50L | 1″ | 50 | 54 | 75 | 125 | 28 | 93 | 2,22 |
SD100-55L | 1″ | 55 | 62 | 81 | 125 | 30 | 93 | 2,67 |
SD100-60L | 1″ | 60 | 62 | 87 | 125 | 33 | 93 | 2,90 |
SD100-65L | 1″ | 65 | 62 | 94 | 135 | 35 | 105 | 3,63 |
SD100-70L | 1″ | 70 | 62 | 100 | 135 | 38 | 105 | 3,83 |
SD100-75L | 1″ | 75 | 76 | 107 | 135 | 38 | 105 | 4,80 |
SD100-80L | 1″ | 80 | 76 | 113 | 140 | 38 | 108 | 5,15 |
SD100-85L | 1″ | 85 | 76 | 117 | 140 | 38 | 100 | 5,90 |
SD100-90L | 1″ | 90 | 76 | 124 | 140 | 45 | 99 | 5,74 |
SD100-95L | 1″ | 95 | 76 | 129 | 140 | 45 | 98 | 5,83 |
SD100-100L | 1″ | 100 | 76 | 136 | 150 | 45 | 98 | 6,00 |
