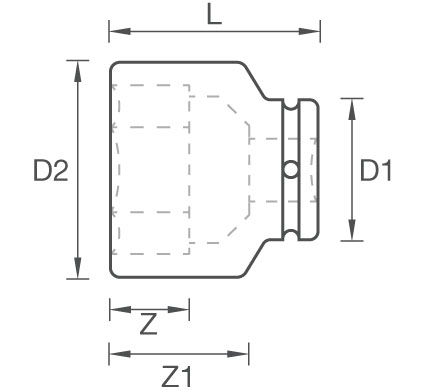

D1 D2 L Z Z1 Ürün Kodu Kare Sürücü Kare Sürücü mm mm mm mm mm
SD112-1P 1″1/2 1″ 86 50 80 14 38 1,98 SD112-118P 1″1/2 1″1/8 86 54 80 16 38 1,98 SD112-114P 1″1/2 1″1/4 86 59 80 19 38 2,15 SD112-138P 1″1/2 1″3/8 86 61 80 20 36 2,10 SD112-112P 1″1/2 1″1/2 86 65 84 21 36 2,30 SD112-158P 1″1/2 1″5/8 86 70 84 23 36 2,40 SD112-134P 1″1/2 1″3/4 86 75 87 25 40 2,40 SD112-178P 1″1/2 1″7/8 86 78 87 26 40 2,40 SD112-200P 1″1/2 2″ 86 82 90 30 43 2,42 SD112-218P 1″1/2 2″1/8 86 84 90 30 43 2,60 SD112-214P 1″1/2 2″1/4 86 90 95 30 51 2,90 SD112-238P 1″1/2 2″3/8 86 94 95 25 51 3,10 SD112-212P 1″1/2 2″1/2 86 97 100 25 56 3,30 SD112-258P 1″1/2 2″5/8 86 102 105 40 61 3,80 SD112-234P 1″1/2 2″3/4 86 105 105 40 61 4,00 SD112-278P 1″1/2 2″7/8 86 110 110 42 66 4,40 SD112-300P 1″1/2 3″ 86 116 110 42 66 4,90 SD112-318P 1″1/2 3″1/8 86 119 110 42 66 5,40 SD112-314P 1″1/2 3″1/4 86 123 120 50 75 6,00 SD112-338P 1″1/2 3″3/8 86 125 120 50 75 6,20 SD112-312P 1″1/2 3″1/2 86 130 120 50 75 6,70 SD112-358P 1″1/2 3″5/8 102 136 120 50 75 7,00 SD112-334P 1″1/2 3″3/4 102 141 130 55 83 8,30 SD112-378P 1″1/2 3″7/8 102 144 130 55 83 8,48 SD112-400P 1″1/2 4″ 102 148 130 55 83 9,10 SD112-418P 1″1/2 4″1/8 102 151 130 55 83 9,40 SD112-414P 1″1/2 4″1/4 102 155 140 70 92 9,97 SD112-438P 1″1/2 4″3/8 102 158 140 70 92 10,30 SD112-412P 1″1/2 4″1/2 102 163 140 72 92 10,67 SD112-434P 1″1/2 4″3/4 102 170 140 77 90 11,10 SD112-478P 1″1/2 4″7/8 102 173 140 77 90 11,50 SD112-500P 1″1/2 5″ 102 178 150 77 100 12,30 SD112-518P 1″1/2 5″1/8 102 180 150 80 100 12,90 SD112-514P 1″1/2 5″1/4 102 185 150 80 100 13,40 SD112-538P 1″1/2 5″3/8 102 188 150 80 100 14,00 SD112-512P 1″1/2 5″1/2 102 192 150 80 100 15,00 SD112-534P 1″1/2 5″3/4 102 199 150 85 97 17,40 SD112-578P 1″1/2 5″7/8 102 203 150 85 97 18,20 SD112-600P 1″1/2 6″ 102 206 150 85 97 18,45 SD112-618P 1″1/2 6″1/8 102 209 150 85 97 19,00 -
