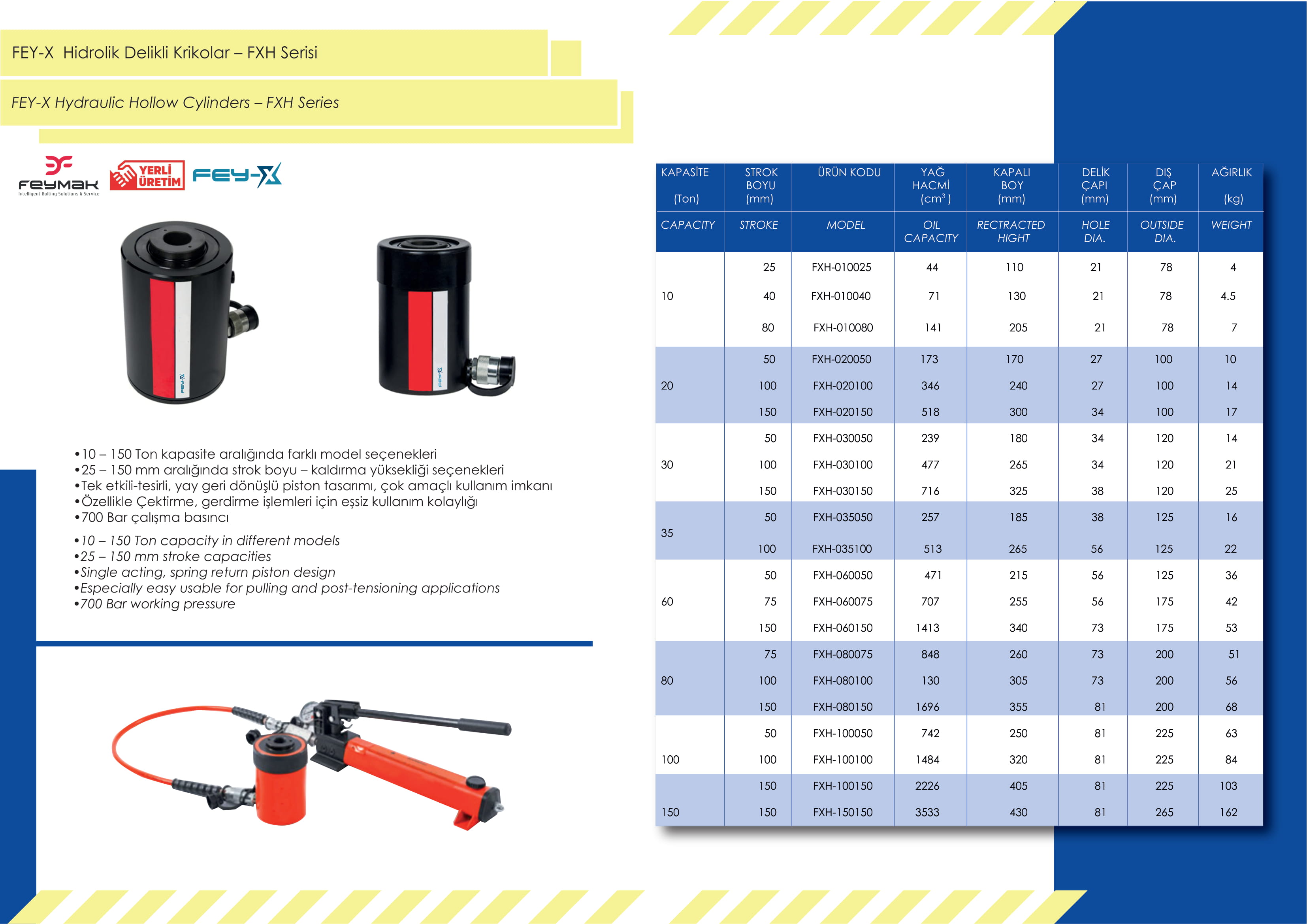

KAPASİTE (Ton) |
STROK BOYU (mm) | ÜRÜN KODU |
YAĞ HACMİ (cm) | KAPALI BOY (mm) |
DELİK ÇAPI (mm) | DIŞ ÇAP (mm) |
AĞIRLIK (kg) |
---|---|---|---|---|---|---|---|
CAPACITY |
STROKE |
MODEL |
OIL CAPACITY | RETRACTED HIGHT | HOLE DIA. | OUTSIDE DIA. | WEIGHT |
10 |
25 | FXH-010025 | 44 | 110 | 21 | 78 | 4 |
40 | FXH-010040 | 71 | 130 | 21 | 78 | 4.5 | |
80 | FXH-010080 | 141 | 205 | 21 | 78 | 7 | |
20 |
50 | FXH-020050 | 173 | 170 | 27 | 100 | 10 |
100 | FXH-020100 | 346 | 240 | 27 | 100 | 14 | |
150 | FXH-020150 | 518 | 300 | 34 | 100 | 17 | |
30 |
50 | FXH-030050 | 239 | 180 | 34 | 120 | 14 |
100 | FXH-030100 | 477 | 265 | 34 | 120 | 21 | |
150 | FXH-030150 | 716 | 325 | 38 | 120 | 25 | |
35 |
50 | FXH-035050 | 257 | 185 | 38 | 125 | 16 |
100 | FXH-035100 | 513 | 265 | 56 | 125 | 22 | |
60 |
50 | FXH-060050 | 471 | 215 | 56 | 125 | 36 |
75 | FXH-060075 | 707 | 255 | 56 | 175 | 42 | |
150 | FXH-060150 | 1413 | 340 | 73 | 175 | 53 | |
80 |
75 | FXH-080075 | 848 | 260 | 73 | 200 | 51 |
100 | FXH-100100 | 130 | 305 | 73 | 200 | 56 | |
150 | FXH-080150 | 1696 | 355 | 81 | 200 | 68 | |
100 |
50 | FXH-100050 | 742 | 250 | 81 | 225 | 63 |
100 | FXH-100100 | 1484 | 320 | 81 | 225 | 84 | |
150 |
150 | FXH-100150 | 2226 | 405 | 81 | 225 | 103 |
150 | FXH-150150 | 3533 | 430 | 81 | 265 | 162 |
